利用java8对设计模式的重构

ddatsh

dev #java 2018/03/20

java8中提供的很多新特性可以用来重构传统设计模式中的写法

策略模式

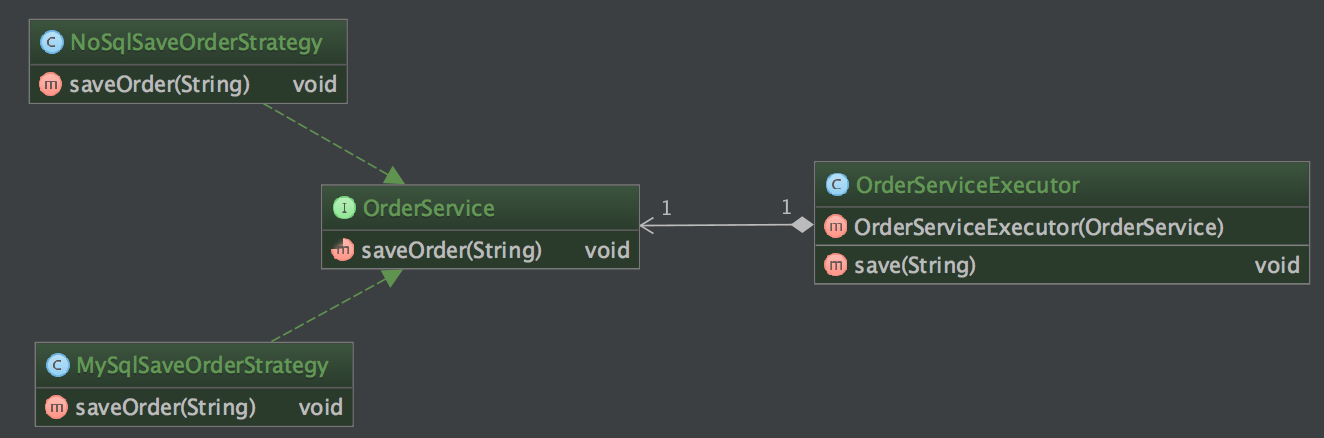

策略模式类图

假设要保存订单，OrderService接口定义要做什么

NoSql/MySql SaveOrderStrategy提供了两种策略，最后在OrderServiceExecutor中通过构造函数注入最终要使用的策略

传统写法至少得4个类

OrderService接口
Mysql策略实现
Nosql策略实现
使用策略的辅助"容器"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45


public interface OrderService {

    void saveOrder(String orderNo);
}

public class MySqlSaveOrderStrategy implements OrderService {

    @Override
    public void saveOrder(String orderNo) {

        System.out.println("order:" + orderNo + " save to mysql");
    }
}

public class OrderServiceExecutor {

    private final OrderService service;

    public OrderServiceExecutor(OrderService service) {

        this.service = service;
    }

    public void save(String orderNo) {

        this.service.saveOrder(orderNo);
    }

}

public class OrderServiceExecutor {

    private final OrderService service;

    public OrderServiceExecutor(OrderService service) {

        this.service = service;
    }

    public void save(String orderNo) {

        this.service.saveOrder(orderNo);
    }

}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10


public class OrderServiceTest {

    public static void main(String[] args) {

        OrderServiceExecutor executor1 = new OrderServiceExecutor(new MySqlSaveOrderStrategy());
        executor1.save("001");
        OrderServiceExecutor executor2 = new OrderServiceExecutor(new NoSqlSaveOrderStrategy());
        executor2.save("002");
    }
}

用 lambda重构后，可以省去2个策略实现类

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11


public class OrderServiceTest {

    public static void main(String[] args) {

        OrderServiceExecutor executor1 = new OrderServiceExecutor((String orderNo) -> System.out.println("order:" + orderNo + " save to mysql"));
        executor1.save("001");

        OrderServiceExecutor executor2 = new OrderServiceExecutor((String orderNo) -> System.out.println("order:" + orderNo + " save to nosql"));
        executor2.save("002");
    }
}

模板方法

把一些通用的标准方法，在抽象父类里仅定义方法签名，实现逻辑交给子类

比如：会员系统中，每个商家都会有一些营销活动，需要推送某种信息给会员，但是不同的商家推送的内容可能不同，有些需要推送优惠券，有些需要积分通知

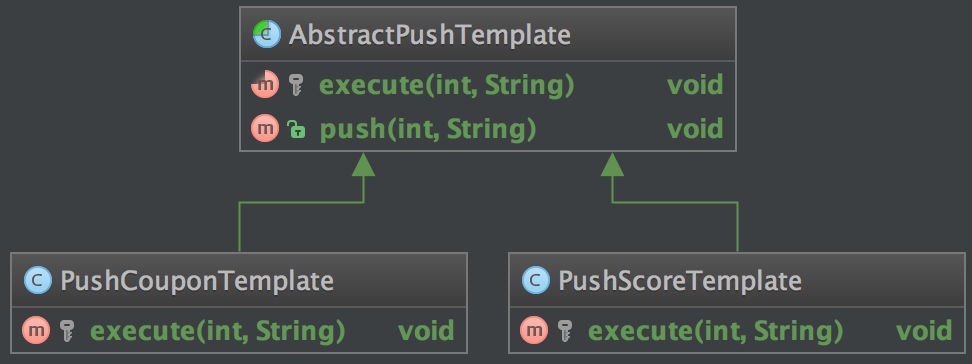

抽象模板类

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12



public abstract class AbstractPushTemplate {

    public void push(int customerId, String shopName) {

        System.out.println("准备推送");
        execute(customerId, shopName);
        System.out.println("推送完成");
    }

    abstract protected void execute(int customerId, String shopName);
}

优惠券具体模板

1
2
3
4
5
6
7
8


public class PushCouponTemplate extends AbstractPushTemplate {

    @Override
    protected void execute(int customerId, String shopName) {

        System.out.println("会员:" + customerId + ",你好，" + shopName + "送您一张优惠券");
    }
}

积分的具体模板

1
2
3
4
5
6
7
8


public class PushScoreTemplate extends AbstractPushTemplate {

    @Override
    protected void execute(int customerId, String shopName) {

        System.out.println("会员:" + customerId + ",你好，" + shopName + "送您10个积分");
    }
}

使用示例

1
2
3
4
5


AbstractPushTemplate template1 = new PushCouponTemplate();
template1.push(1, "糖果店");

AbstractPushTemplate template2 = new PushScoreTemplate();
template2.push(1, "服装店");　　

显然如果模板的实现方式越多，子类就越多

lambda重构后，可以把上面的3个模板（包括抽象类模板）减少到1个

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12


import java.util.function.*;

public class PushTemplateLambda {

    public void push(int customerId, String shopName, Consumer<Object[]> execute) {

        System.out.println("准备推送");
        Object[] param = new Object[]{customerId, shopName};
        execute.accept(param);
        System.out.println("推送完成");
    }
}

借助Consumer这个function interface，可以省去实现子类，具体的实现留到使用时再来决定，如：

1
2
3
4
5
6
7


new PushTemplateLambda().push(1, "糖果店", (Object[] obj) -> {
    System.out.println("会员:" + obj[0] + ",你好，" + obj[1] + "送您一张优惠券");
});

new PushTemplateLambda().push(1, "服装店", (Object[] obj) -> {
    System.out.println("会员:" + obj[0] + ",你好，" + obj[1] + "送您10个积分");
});

观察者模式

基于某个Subject主题，然后一堆观察者Observer注册到主题上，有事件发生时，subject根据注册列表，去通知所有的observer

Observer接口

1
2
3
4


public interface Observer {

    void notify(String orderNo);
}

Subject接口

1
2
3
4
5
6


public interface Subject {

    void registerObserver(Observer o);

    void notifyAllObserver(String orderNo);
}

Subject接口实现

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21



import java.util.*;

public class SubjectImpl implements Subject {

    private final List<Observer> list = new ArrayList<>();

    @Override
    public void registerObserver(Observer o) {

        list.add(o);
    }

    @Override
    public void notifyAllObserver(String orderNo) {

        for (Observer observer : list) {
            observer.notify(orderNo);
        }
    }
}

观察者的两个实现

1
2
3
4
5
6
7
8


public class OrderObserver implements Observer {

    @Override
    public void notify(String orderNo) {

        System.out.println("订单 " + orderNo + " 状态更新为【已支付】");
    }
}

1
2
3
4
5
6
7
8


public class StockObserver implements Observer {

    @Override
    public void notify(String orderNo) {

        System.out.println("订单 " + orderNo + " 已通知库房发货！");
    }
}

1
2
3
4
5
6
7


 public static void main(String[] args) {

        Subject subject = new SubjectImpl();
        subject.registerObserver(new OrderObserver());
        subject.registerObserver(new StockObserver());
        subject.notifyAllObserver("001");
}

java8 接口可以提供默认实现方法，弄一个新的主题接口

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17


import java.util.*;

public interface NewSubject {

    List<Observer> list = new ArrayList<>();

    default void registerObserver(Observer o) {
        list.add(o);
    }

    default void nofityAllObserver(String orderNo) {

        for (Observer observer : list) {
            observer.notify(orderNo);
        }
    }
}

1
2
3
4
5
6
7
8
9


 public static void main(String[] args) {

        NewSubject subject = new NewSubject() {

        };
        subject.registerObserver((String orderNo) -> System.out.println("订单 " + orderNo + " 状态更新为【已支付】"));
        subject.registerObserver((String orderNo) -> System.out.println("订单 " + orderNo + " 已通知库房发货！"));
        subject.nofityAllObserver("002");
    }

用2个接口实现了观察者模式

责任链/职责链模式

每个处理环节，都有一个“指针”指向下一个处理者，类似链表一样

Processor接口

1
2
3
4
5
6


public interface Processor {

    Processor getNextProcessor();

    void process(String param);
}

抽象实现类

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16


public abstract class AbstractProcessor implements Processor {

    private Processor next;

    public AbstractProcessor(Processor processor) {
        this.next = processor;
    }

    @Override
    public Processor getNextProcessor() {
        return next;
    }

    @Override
    public abstract void process(String param);
}

2个具体的实现

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17



public class ProcessorImpl1 extends AbstractProcessor {

    public ProcessorImpl1(Processor processor) {

        super(processor);
    }

    @Override
    public void process(String param) {

        System.out.println("processor 1 is processing:" + param);
        if (getNextProcessor() != null) {
            getNextProcessor().process(param);
        }
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16


public class ProcessorImpl2 extends AbstractProcessor {

    public ProcessorImpl2(Processor next) {

        super(next);
    }

    @Override
    public void process(String param) {

        System.out.println("processor 2 is processing:" + param);
        if (getNextProcessor() != null) {
            getNextProcessor().process(param);
        }
    }
}

java8重构后，只需要一个新接口

1
2
3
4
5
6
7


import java.util.function.*;

@FunctionalInterface
public interface NewProcessor {

    Consumer<String> process(String param);
}

同样的效果，可以写得很简洁：

1
2
3


Consumer<String> p1 = param -> System.out.println("processor 1 is processing:" + param);
Consumer<String> p2 = param -> System.out.println("processor 2 is processing:" + param);
p2.andThen(p1).accept("something happened");

andThen天然就是getNextProcessor的另一种表达。

重要提示

什么时候该用lambda，什么时候不用，这是要看情况的，如果处理逻辑相对比较简单，可以用lamdba来重构，以便让代码更简洁易读，如果处理逻辑很复杂，应该还是用“类”
